Ghats 23x23mm Glass Pool Mosaic for Waterlines and Spa Details
Ghats 23×23mm Glass Pool Mosaic for Waterlines and Spa Details
Ghats uses a compact 23 × 23 × 8 mm square chip for pool zones where the layout needs to turn through corners, steps, returns or smaller wall sections. The three supplied inkjet models offer a lighter aqua-blue direction, a deeper blue-charcoal choice and a mid-tone blue-grey balance. That makes the collection useful for waterlines, spa walls, pool steps and selected hotel pool details while retaining one sheet size and mounting route.
PRODUCT DETAILS
| Series | Ghats |
|---|---|
| Models | Ghats B 2323-R; Ghats D 2323-R; Ghats E 2323-R |
| Material | Glass |
| Process | High Temperature Inkjet Printing |
| Chip Size | 23 × 23 × 8 mm |
| Sheet Size | 304 × 304 × 8 mm |
| Mounting Method | Mesh-mounted; dot-mounted available |
| MOQ | 72 sqm |
| Packing | 11 pcs/carton; 72 cartons/pallet; 20 pallets/container |
| Application | Pool waterlines, pool steps, spa walls, small pool-wall panels, hotel and resort pools, residential and commercial pools, and renovation details. Fountains, architectural water features, shower walls and hospitality wet areas may be evaluated. |
WHY THE 23 × 23 MM CHIP SUITS DETAILED POOL ZONES
The 23 mm square chip creates a fine repeated field. Rather than leading the page with a generic pool-wall claim, Ghats is planned around smaller zones where a compact mosaic scale can make the route, edge and transition easier to organise.
- Waterline turns: A small square module can be planned around corners, short returns and marked end points after the required cuts are reviewed.
- Step details: The same chip scale can continue across selected risers and edge-adjacent wall areas when sheet positions are mapped before fixing.
- Spa surrounds: Fine repetition can support compact spa walls where grout, reflected light and nearby stone are part of the visual decision.
- Renovation zones: Smaller replacement sections can be measured separately, rather than treated as part of one large uninterrupted pool surface.
THREE BLUE AND CHARCOAL MODEL OPTIONS
Ghats B 2323-R Pale Aqua Blue
B combines pale aqua, medium blue and soft grey movement. It can be considered for brighter waterlines, spa walls and residential pool zones where a lighter pool-led palette is preferred.
Ghats D 2323-R Deep Blue Charcoal
D has the deepest visual weight in the supplied set, with blue, charcoal and darker mineral movement. Review it for hotel pool details, deeper feature panels and water-focused architectural accents.
Ghats E 2323-R Blue Grey
E balances blue-grey, pale aqua and darker blue markings. It can be reviewed where pool finishes need a middle tone between a bright aquatic surface and a darker wall direction.
APPLICATION GUIDE FOR WATERLINES STEPS AND SPAS
Pool Waterlines
Choose B for a lighter aqua-blue read, D for a stronger dark-blue line or E for a balanced blue-grey transition. Mark corners, returns, terminations and adjacent coping before sheet placement is approved.
Pool Steps and Entry Zones
The 23 × 23 mm chip suits selected risers and step-adjacent walls when the layout records edges, changes of plane and required cuts. Coordinate the complete wet-area installation system for the actual site.
Spa Walls and Wellness Pools
B can support a lighter aquatic spa palette, D can introduce more contrast, and E can be considered with grey stone or cooler finishes. Compare the selected sheet with grout and reflected light.
Hotel and Resort Pool Details
Use a named Ghats model for selected waterline bands, small wall panels or pool-side feature areas. Keep the chosen model consistent across drawings, samples and purchase documents.
Fountains and Architectural Water Features
Ghats may be evaluated for secondary water-feature surfaces when the substrate, waterproofing, setting materials, grout and cleaning method are appropriate for the planned location.
PRODUCT IMAGE GALLERY
Compare the three supplied models at full sheet scale before choosing a waterline, step or spa direction. Replace each URL token with the matching uploaded HTTPS image.
Ghats B 2323-R: Ghats B 2323-R combines pale aqua, blue and soft grey movement for a lighter aquatic direction.

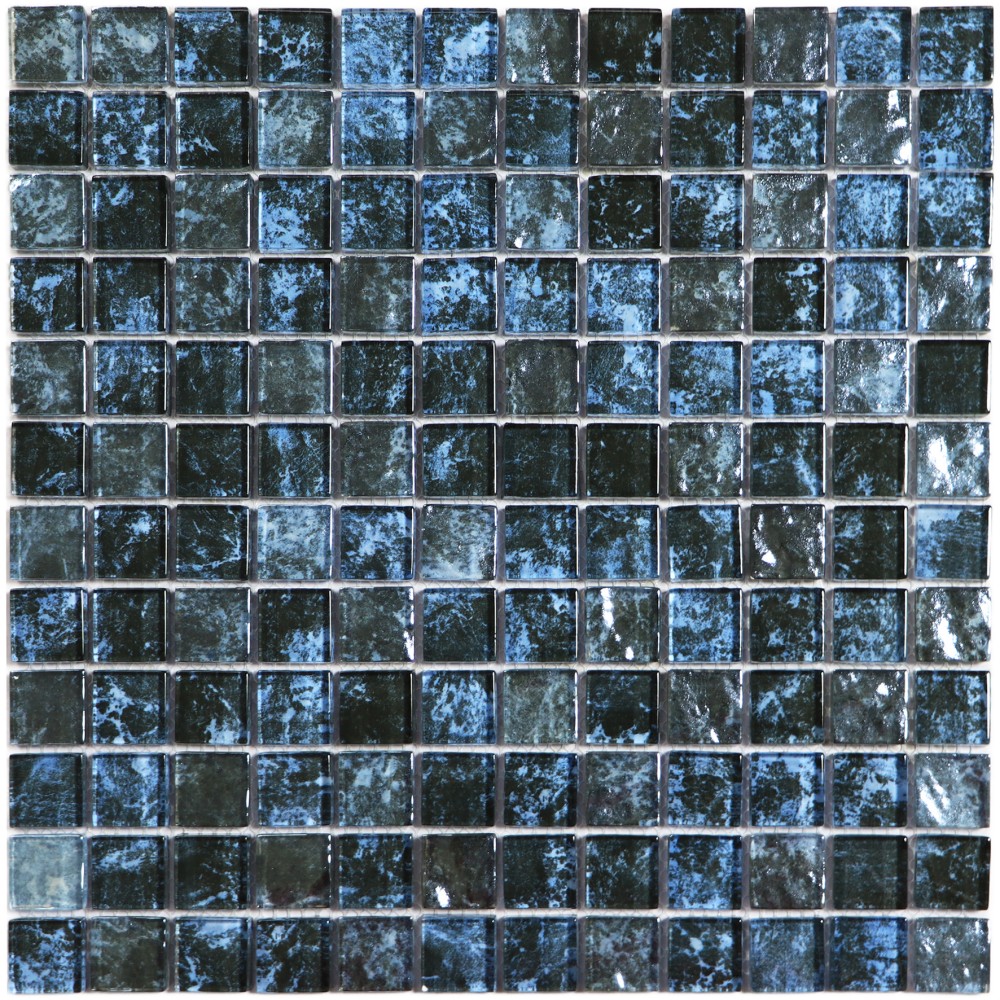

Ghats D 2323-R: Ghats D 2323-R has the deepest blue and charcoal movement in the supplied group.

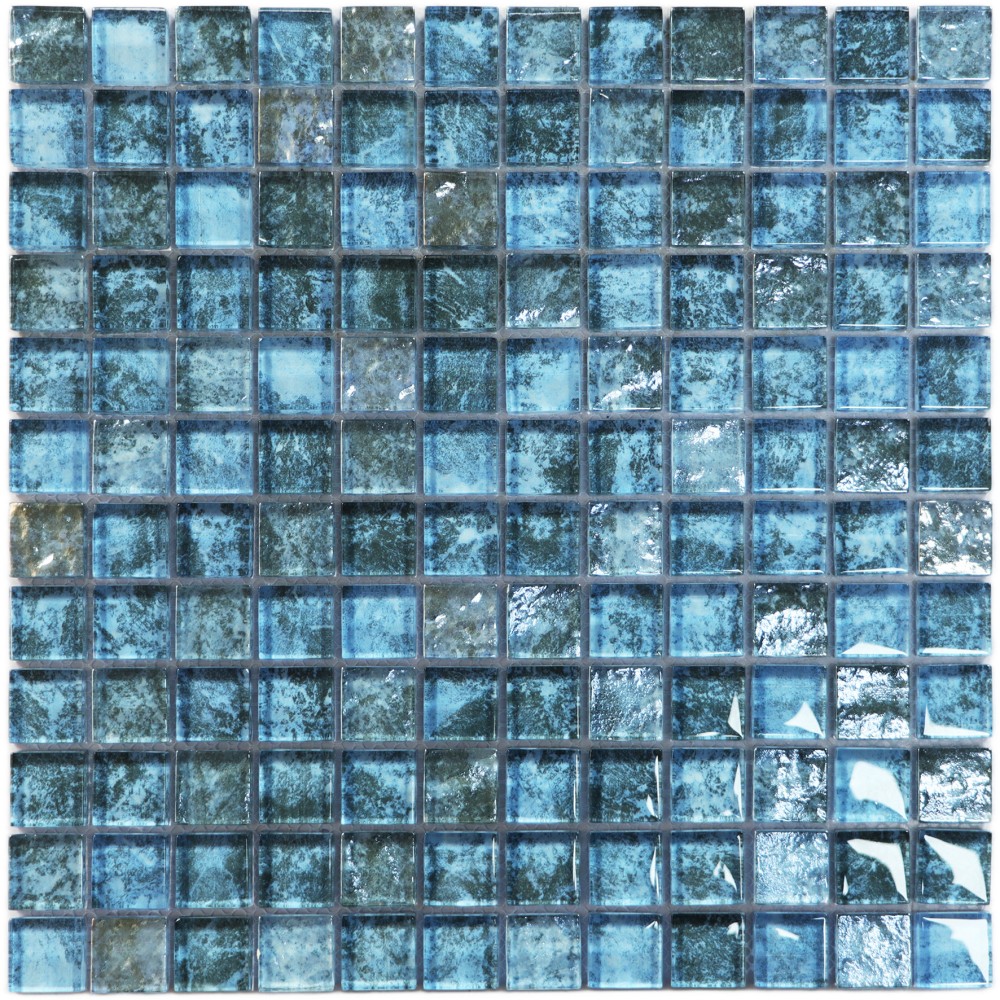

Ghats E 2323-R: Ghats E 2323-R balances blue, blue-grey and pale aqua markings for a mid-tone pool palette.
SAMPLE REVIEW FOR SMALL SCALE MOSAIC
The supplied image shows the visual direction of each model, but a screen cannot show how the small glass chips read under water and project lighting. A sample review should focus on the relationship between the chosen model, grout and the actual pool zone.
- Compare B, D and E with the intended coping, stone, tile or wall finish.
- Lay several sheets together to assess tonal movement across a longer waterline or wider spa wall.
- Review a light and a dark grout direction before choosing how strongly the square-chip field should read.
- Check the material under representative pool, spa or hotel lighting.
- Prepare a wet mock-up where practical because water depth and reflections may influence perceived colour.
LAYOUT PLANNING FOR WATERLINES AND POOL STEPS
Start the measurement with the confirmed 304 × 304 × 8 mm mounted sheet, then divide the project into practical zones. The quantity for a waterline, pool step and spa wall should be checked separately because each area has different corners and cut conditions.
- Name every waterline, step face, spa panel and selected pool-wall area on the layout.
- Record corners, returns, end points, niches, perimeter edges and changes of plane.
- Place full sheets first, then identify partial sheets and cut positions.
- Write Ghats B 2323-R, Ghats D 2323-R or Ghats E 2323-R beside each approved zone.
- Submit the measured project area together with the requested quantity and the 72 sqm MOQ.
INSTALLATION COORDINATION FOR GLASS MOSAIC
Review the Complete Assembly
The installer should approve the substrate, waterproofing, compatible setting materials and grout for the intended pool or wet-area location.
Check Sheet Position Before Fixing
Dry-position the mesh-mounted sheets to review alignment, square-chip continuity, cuts, corners, joints and changes of plane. A dot-mounted option is also available when requested.
Coordinate Grout and Cleaning
Agree on grout, edge treatment and the cleaning method before installation begins. Final approval remains specific to the actual site conditions.
ORDER PREPARATION FOR PROJECT AND DISTRIBUTION BUYERS
A useful Ghats inquiry links the selected model to a defined pool area and purchasing brief.
- Exact model and source filename
- Measured project area or required quantity
- Waterline, step, spa, pool wall or secondary wet-area application
- Mesh-mounted or dot-mounted preference
- Destination port or country and target market
- Sample, packing, private-label, document and test-report requirements
- Required delivery window
Packing is 11 pcs/carton; 72 cartons/pallet; 20 pallets/container.
WHO GHATS 2323 IS FOR
Pool Builders and Contractors
For waterline routes, entry details, spa walls and measured pool zones that use a fine square chip scale.
Architects and Designers
For comparing three blue and charcoal directions with grout, coping, stone and hotel finishes.
Importers and Tile Distributors
For wholesale or project purchasing based on stated Chip Size, Sheet Size, mounting, MOQ and export packing.
Hotel and Resort Project Teams
For selected pool and wellness areas that need one exact Ghats model, sample review and a clear quantity brief.
FREQUENTLY ASKED QUESTIONS
Where is Ghats 23 × 23 mm glass pool mosaic most suitable?
Ghats is suited to detailed swimming-pool areas such as waterlines, pool steps, spa walls, small pool-wall panels and renovation zones. It may also be considered for hotel pools and selected wet-area features after the complete installation assembly is reviewed.
Why choose a 23 × 23 mm chip for a pool waterline?
The compact square chip can follow corners, returns and short waterline sections with a finer visual rhythm than a larger mosaic. Show the intended route and end points on the layout before the sheets are ordered.
How do the three Ghats models differ?
B is the lighter pale aqua-blue option, D has the deepest blue-charcoal direction, and E offers a mid-tone blue-grey balance. Compare the actual sheets with the proposed grout, coping and pool finishes before selection.
Which Ghats option suits a darker pool feature?
Ghats D 2323-R is the darkest visual direction shown in the supplied images. It can be reviewed for deeper pool-wall panels, hotel pool details and architectural water features where a more pronounced contrast is wanted.
What sizes apply to this Ghats collection?
The individual Chip Size is 23 × 23 × 8 mm. The mounted Sheet Size is 304 × 304 × 8 mm.
Can Ghats be used across pool steps and a waterline?
The same selected model can be considered across adjoining waterline and step areas. The layout should show risers, tread edges, corners, required cuts and changes of plane so the installation team can review alignment.
How should samples be checked before specification?
Review physical sheets with the intended grout and nearby finishes. Look at more than one sheet under the project lighting, and prepare a representative wet mock-up where practical because water and reflected light may change perceived colour.
What mounting options are available?
Ghats is available mesh-mounted, with a dot-mounted option also available. State the required mounting method in the inquiry.
What are the MOQ and packing details?
The MOQ is 72 sqm. Packing is 11 pcs/carton; 72 cartons/pallet; 20 pallets/container.
What should be included in a Ghats quotation request?
Send the exact model and source filename, the measured project area or quantity, intended pool zone, mounting choice, destination, target market, sample needs, packing or private-label requirements, required delivery window and any requested documents or test reports.
RELATED GLASS POOL MOSAIC RESOURCES
Compare Other Glass Pool Mosaic Options
Browse the Ralart glass pool mosaic collection when another chip size or visual scale is required.
Review Pool Project Context
See the Ralart pool project gallery for broader hotel, resort and residential swimming-pool applications.
REQUEST A GHATS 2323 QUOTATION
Send the selected Ghats 2323 model with the project scope so the pool application, sheet planning and commercial requirements can be reviewed together.
- Exact model and source filename
- Measured project area or required quantity
- Intended pool zone or secondary wet-area application
- Mounting preference and target market
- Destination, sample, private-label, packing and document needs
- Required delivery window
