Taurus 23x23 mm Inkjet Glass Pool Mosaic for Pool Walls and Steps
Taurus 23×23 mm Inkjet Glass Pool Mosaic for Pool Walls and Steps
Taurus is a high-temperature inkjet glass pool mosaic collection made with confirmed 23 × 23 × 8 mm chips. Five models span navy, aquatic blue, teal green, pale silver and graphite-blue palettes, giving pool builders, designers and hospitality buyers distinct options for walls, waterlines, steps, spas and detailed feature zones. The collection is supplied on 304 × 304 × 8 mm mounted sheets, with mesh-mounted and dot-mounted construction available.
PRODUCT DETAILS
| Series | Taurus |
|---|---|
| Models | Taurus A 2323-R; Taurus B 2323-R; Taurus C 2323-R; Taurus D 2323-R; Taurus E 2323-R |
| Material | Glass |
| Process | High Temperature Inkjet Printing |
| Chip Size | 23 × 23 × 8 mm |
| Sheet Size | 304 × 304 × 8 mm |
| Mounting Method | Mesh-mounted; dot-mounted available |
| MOQ | 72 sqm |
| Packing | 11 pcs/carton; 72 cartons/pallet; 20 pallets/container |
| Application | Pool walls, pool waterlines, selected pool steps, hotel and resort pools, residential and commercial pools, spa and wellness zones and renovation details. Fountains, architectural water features, shower walls and hospitality wet areas may be evaluated for the intended location. |
PRODUCT GALLERY
View the complete five-model set before choosing a colour family. Each image position is tied to one exact Taurus model and one unique replacement token.

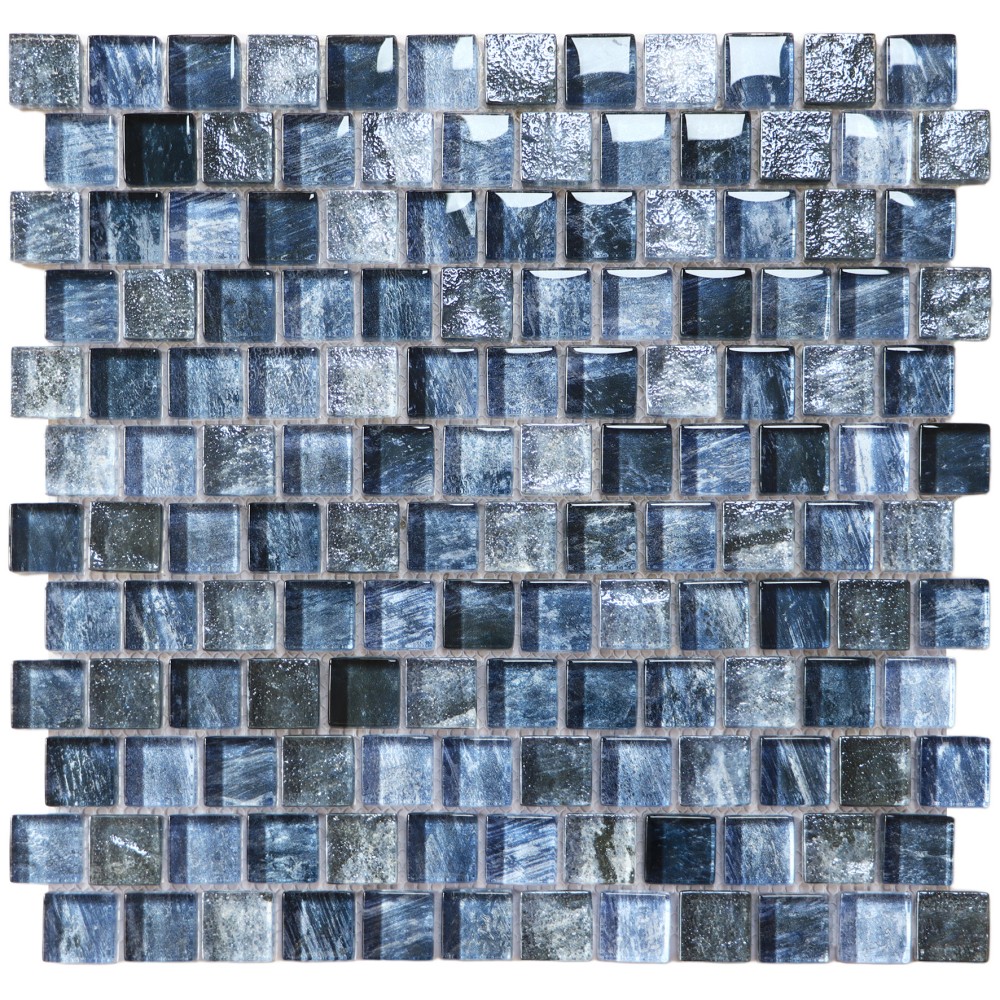

Taurus A 2323-R: Taurus A 2323-R combines navy, denim blue and silver-grey movement.
Taurus B 2323-R: Taurus B 2323-R offers the brightest aquatic blue direction in the group.

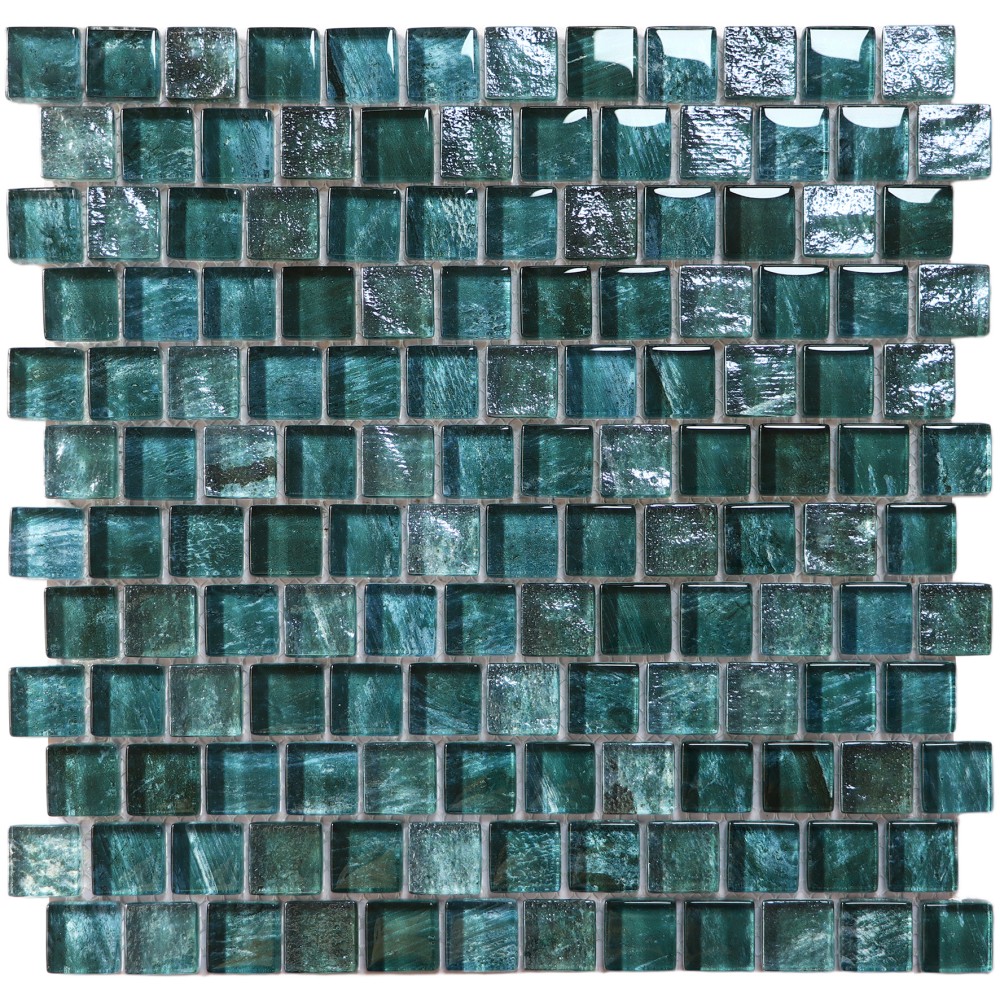

Taurus C 2323-R: Taurus C 2323-R moves through teal green, blue-green and smoky neutral tones.

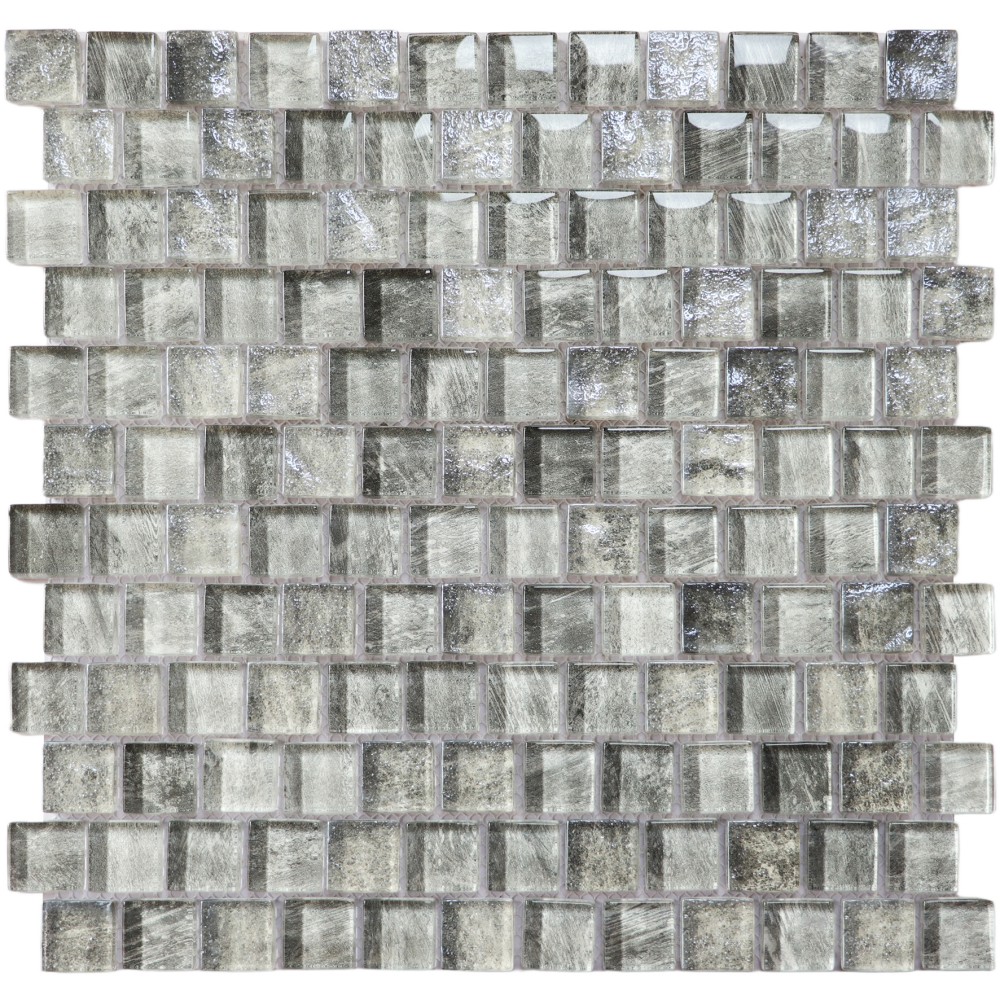

Taurus D 2323-R: Taurus D 2323-R provides the lightest palette, led by pale silver and soft grey.

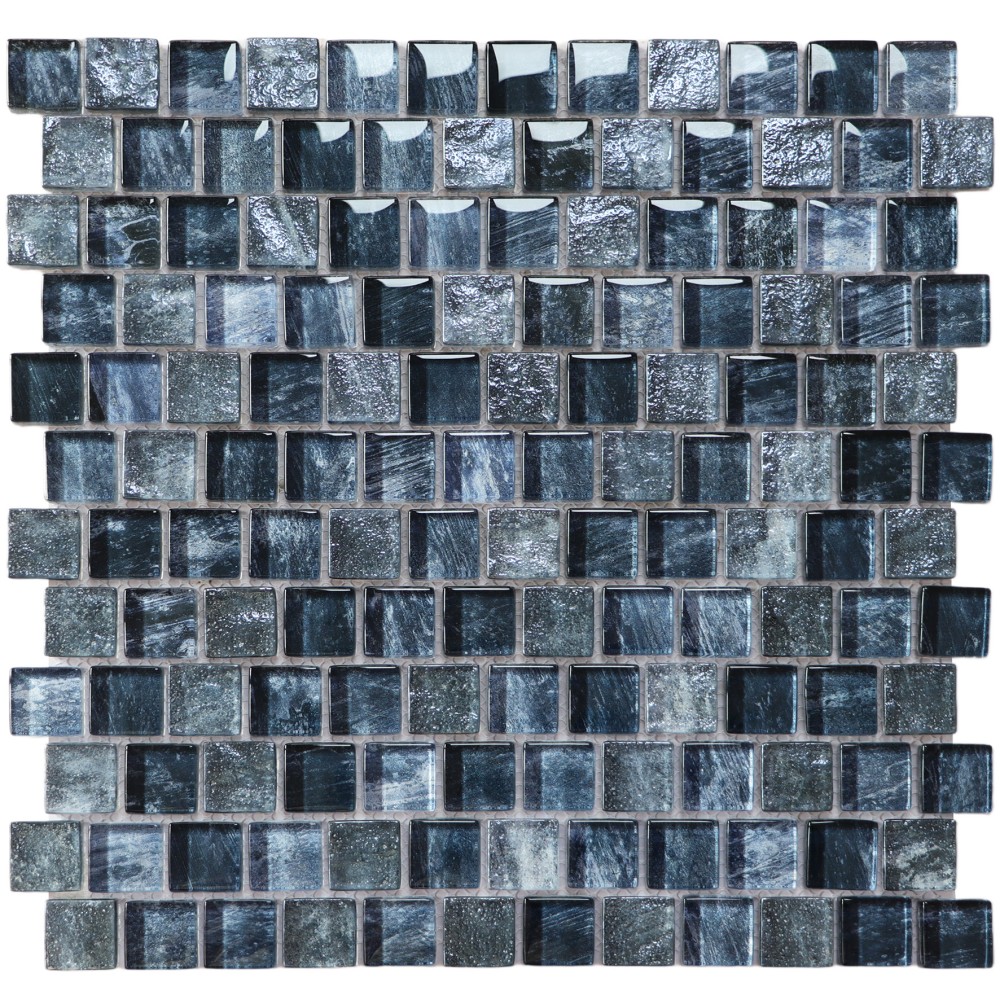

Taurus E 2323-R: Taurus E 2323-R uses graphite, charcoal blue and silver for a darker contrast.
FIVE COLOUR PALETTES
The Taurus group concentrates on blue, teal, silver and graphite families. Use the descriptions as a visual guide while keeping the exact model name on samples and quotations.
Taurus A 2323-R Navy and Silver
A layered mix of navy, denim blue and silver-grey. Consider it when the pool design needs a darker blue base with visible tonal contrast.
Taurus B 2323-R Aquatic Blue
The clearest bright-blue option in the group, moving between aqua, mid-blue and deeper blue. It can support classic pool palettes, spa zones and water-led features.
Taurus C 2323-R Teal Green
A blue-green and teal-led model for resort pools, spa settings and water features coordinated with green stone, planting or natural materials.
Taurus D 2323-R Pale Silver
The lightest Taurus option, using pale silver, soft grey and clear-looking highlights. It may suit lighter hospitality schemes and spa surfaces.
Taurus E 2323-R Graphite Blue
A graphite, charcoal-blue and silver palette for stronger contrast on pool walls, waterline accents, steps and feature zones.
SMALL CHIP SCALE FOR DETAILED POOL SURFACES
The confirmed 23 × 23 mm Chip Size creates a dense field of individual pieces across the mounted sheet.
- Fine Visual Rhythm: More chip divisions distribute colour and printed movement across the surface, helping the five Taurus palettes read as layered rather than as a few large blocks.
- Detailed Zones: The compact scale can be considered for waterlines, step risers, borders and other measured areas where the layout includes frequent edges or changes of plane.
- Curved and Shaped Areas: For modest curves or shaped details, ask the installer to evaluate sheet flexibility, orientation and cuts before the product is specified.
- Grout Visibility: A smaller chip scale creates a more frequent grout network, so grout colour should be reviewed with a physical sample rather than selected separately.
POOL ZONE SELECTION GUIDE
Main Pool Walls
Taurus B supports a brighter aquatic direction; A and E provide deeper tones; C introduces teal green; D creates the lightest neutral option. Compare the models beside coping, decking and surrounding stone.
Waterlines and Edge Bands
The 23 × 23 mm chip scale can define a continuous band around corners and returns. A, B and E offer different levels of blue and dark contrast, while D provides a lighter boundary.
Pool Steps and Vertical Risers
Use a measured elevation to coordinate the chip grid with tread edges, risers and adjacent wall sheets. Colour contrast can be reviewed with A, D or E, but final selection should follow the project layout and sample approval.
Spa and Wellness Areas
B offers a blue aquatic palette, C moves toward teal green and D provides a pale silver direction. Review the selected model with the intended grout and project lighting.
Hotel Resort and Commercial Pools
The five-model range allows the pool finish to coordinate with different hospitality palettes, from bright aquatic blue to restrained silver and graphite.
Fountains and Secondary Wet Areas
Fountains, architectural water features, shower walls, hotel wet areas and resort bathroom features may be evaluated after the complete installation system is reviewed for the intended location.
WATERLINE STEP AND CURVED AREA PLANNING
- Waterline Route: Mark the starting point, corners, returns, steps, interruptions and final termination before the sheet layout is approved.
- Step Alignment: Show tread edges and risers on the drawing so full sheets and cut pieces can be coordinated before ordering.
- Curved Surfaces: Prepare a representative trial area when the design includes radiused walls, columns or other shaped elements.
- Transitions: Confirm how Taurus meets coping, larger tiles, drainage details, fittings and adjacent finishes.
- Model Continuity: Use the exact Taurus model name on the drawing, sample request, quotation and purchase order.
COLOUR GROUT AND LIGHTING REVIEW
Underwater Appearance
Water depth, reflected light and viewing angle may alter the perceived result. Evaluate a wet mock-up where practical rather than relying only on a dry image.
Grout Selection
Place possible grout colours beside the mounted sheet. With 23 × 23 mm chips, the grout network forms a significant part of the overall visual pattern.
Project Lighting
Review samples under lighting that represents the actual indoor or outdoor project. Bright daylight, shaded areas and evening lighting can change the balance between the printed and reflective areas.
Surrounding Materials
Compare the sample with coping, decking, stone, metal details and other finishes so the selected model belongs to the complete project palette.
SHEET MAPPING AND QUANTITY PREPARATION
Sheet planning should connect the measured project area with the actual pool geometry.
1Record the Net Area
Measure the intended pool wall, waterline, step, spa or feature surface in square metres.
2Mark Interruptions
Identify fittings, drains, corners, returns, columns, steps and other areas that change the sheet plan.
3Map the Sheets
Use the 304 × 304 × 8 mm Sheet Size to position full sheets and review where perimeter cuts will occur.
4Prepare the Order Quantity
Add the exact model and measured area to the inquiry so project quantity and packing can be discussed from one layout basis.
INSTALLATION CHECKPOINTS
- Substrate and Waterproofing: Confirm that the substrate preparation and waterproofing system suit the intended pool or wet-area location.
- Setting Materials: Select compatible setting materials for glass mosaic and the complete installation assembly.
- Sheet Position: Dry-position the mounted sheets to review alignment, orientation, corners, transitions and cuts before fixing.
- Grout and Joints: Coordinate grout, joints, perimeter edges and changes of plane with the installer and project requirements.
- Cleaning Method: Agree on the cleaning process for the completed surface before installation begins.
- Project Approval: Obtain project-specific approval of the complete wet-area system rather than treating general guidance as engineering approval.
PROCUREMENT SNAPSHOT
Use one concise procurement brief for the selected Taurus model.
- Product Reference: Exact Taurus model and source image name.
- Quantity: Required square metres or measured project area; confirmed MOQ 72 sqm.
- Mounting: Mesh-mounted, or request the dot-mounted option.
- Export Packing: 11 pcs/carton; 72 cartons/pallet; 20 pallets/container.
- Project Information: Intended application, target market, destination port or country and required delivery window.
- Additional Requirements: Sample, packing, private-label, documentation or test-report needs.
WHOLESALE PROJECT AND DESIGN USE
Pool Builders
For pool wall, waterline, step and renovation layouts that need a compact Chip Size and mounted Sheet Size recorded before quantity planning.
Architects and Designers
For comparing five palettes and coordinating the selected Taurus model with grout, stone, lighting and surrounding materials.
Importers and Distributors
For wholesale, stock or project purchasing based on confirmed mounting, MOQ and export packing information.
Hotel Resort and Spa Purchasers
For project briefs that require the exact model, measured area, destination, sample needs and selected pool or hospitality application.
FREQUENTLY ASKED QUESTIONS
Which swimming pool areas can use Taurus?
Taurus can be considered for pool walls, waterlines, selected step details, hotel and resort pools, residential pools, commercial pools, spa zones and renovation features. Confirm the complete installation assembly and project requirements for the intended area.
How do I select among the five Taurus models?
Choose the colour family first: Taurus A is navy and silver, B is aquatic blue, C is teal green, D is pale silver, and E is graphite blue. Compare the exact physical samples with the planned grout, lighting, water and surrounding finishes.
What are the confirmed Chip Size and Sheet Size?
The individual Chip Size is 23 × 23 × 8 mm. The mounted Sheet Size is 304 × 304 × 8 mm.
What is the difference between Taurus A and Taurus B?
Taurus A 2323-R combines darker navy, denim blue and silver-grey tones. Taurus B 2323-R is brighter and more aquatic, with blue and blue-green movement. Review both samples in the intended pool environment before selection.
Which Taurus model provides a green-led option?
Taurus C 2323-R is the teal-green choice shown in the supplied images. It may be considered for resort pools, spa areas and architectural water features coordinated with blue-green or natural surrounding finishes.
Which options suit a neutral or darker design?
Taurus D 2323-R provides the lightest silver-grey palette, while Taurus E 2323-R gives the deepest graphite-blue direction. Taurus A 2323-R offers an intermediate navy and silver alternative.
How should the 23 × 23 mm chip scale be evaluated?
Review several mounted sheets together to assess the dense visual rhythm, colour distribution, grout network and alignment. For steps, corners or curved details, ask the installer to confirm sheet handling and required cuts.
Which mounting methods are available?
Taurus is available mesh-mounted, and dot-mounted construction is also available. Include the required mounting method in the inquiry.
What is the MOQ and export packing?
The confirmed MOQ is 72 sqm. Packing is 11 pcs/carton; 72 cartons/pallet; 20 pallets/container.
What should I include when requesting samples or a quotation?
Send the exact Taurus model, required quantity or measured project area, intended application, mounting preference, destination port or country, target market, sample requirement, packing or private-label needs, required delivery window and requested documents or test reports.
MORE POOL MOSAIC RESOURCES
Find Another Chip Scale
Compare the Ralart glass pool mosaic range when the project needs a larger chip scale, another colour direction or a different pool-zone focus.
Review Pool Project Context
Use the Ralart swimming pool project gallery to review broader pool, hotel and resort application context before finalising the product brief.
REQUEST PRODUCT INFORMATION
Send one complete brief so Ralart Mosaic can identify the exact Taurus model and project requirements.
Identify the Product
Provide the selected model, required quantity or measured area, and preferred mounting method.
Describe the Project
State the pool zone or secondary wet-area application, target market, destination port or country and required delivery window.
List the Commercial Requirements
Include sample, packing, private-label, documentation and test-report requirements.
